Long Stroke Air Brake Chamber 3030 3" 76mm Replaces fit for Haldex GTA-3030LS-WCR

Application：
fit for Haldex: GC3030LCW
fit for Bendix: NT3030ELS-WC
fit for Freightliner: HDX1373030215
fit for Others: BTS-3030LS-WCR, GTA-3030LS-WCR

OE/Part number：
GC3030LCW,
NT3030ELS-WC,
HDX1373030215,
BTS-3030LS-WCR,
GTA-3030LS-WCR,
NT3030ELSWC,
BTS3030LSWCR,
GTA3030LSWCR

Specification：
Condition: New
Actuator Type Siz: 3030
Stroke Type: Long
Available Stroke: 3", 76mm
Length from mounting bracket to the end of Spring Housing: 9-7/8", 251mm
Length of Piggyback: 7-3/8", 187mm
Dimension at rolled Spring Housing flange: 8-5/16", 211mm
Dimension at Service Clampband: 10-3/16", 259mm
Pushrod Length from the face of Service Housing: 1"
Distance to Clevis Pin centerline from the face of Service Housing: 2-1/4"
Weight: 21.9 lbs. , 9.9 kg.
Packaging Type: Box
Fitment Type: Direct Replacement

Feature:

- High-Quality Torque Long Stroke Air Brake Chamber Type 3030
- Superior Power Spring Technology; Advanced powder coating process; Resists corrosion and fatigue
- Double O-ring Center seal; Two o-rings fit for positive sealing and plastic bearings fit for long life
- World Class Diaphragm; High-quality rubber compound, resistant to heat and cold
- Rugged Service Housing; 9 gauge steel, powder-coated
- Self-piloting Dust Shield
- Sizes to fit all drum brake applications

Package Includes:

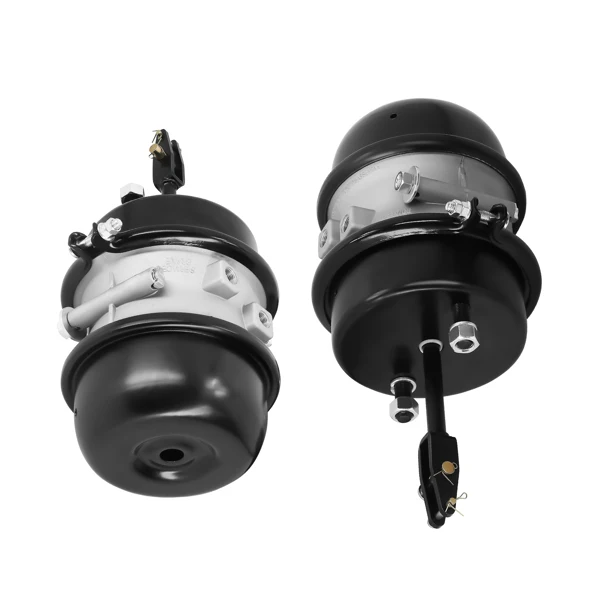

2 x Air Brake Chamber (Showing as the picture)

Note：
●Please confirm your vehicle condition and OE number before placing an order!
●Please note that this is an after-sales part, not an original part.
●We suggest that you seek professional installation to avoid unnecessary trouble.
●If you have any questions, please contact us.
